The parts we fit, supplied on their own. Choose your option, and we confirm availability and postage before anything is charged. All prices are shown excluding VAT.
Alpro

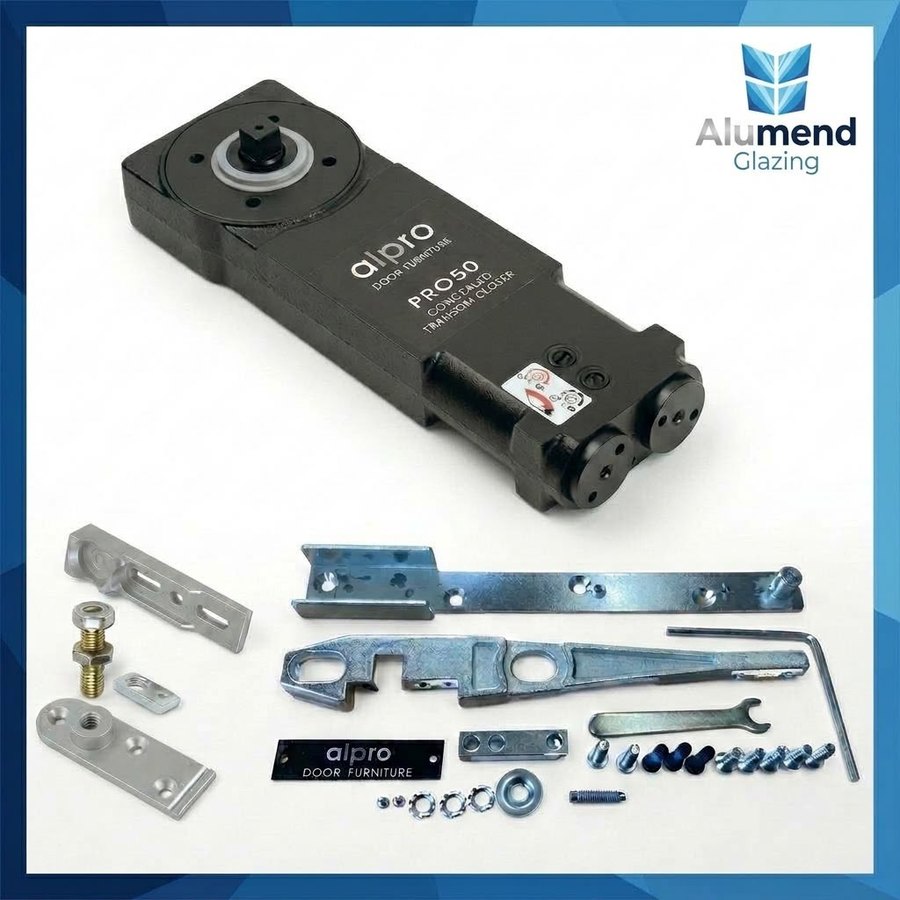

Concealed Overhead Transom Closer
Complete kit for most aluminium doors. Controlled closing on single or double action doors, with closing and latching speeds adjustable on site.
Medium duty — doors to 950mm wide, 2500mm high, 60kg
Heavy duty — doors to 1100mm wide, 2500mm high, 80kg
Light duty — for lighter leaves; ask and we will confirm against your door
Variable strength — adjustable on site to suit the door
DDA compliant — reduced opening force for accessible entrances
Dummy — non-operational, for the passive leaf of a pair so both leaves look the same
Specification
Body: 292 × 90mm
Concealed thickness: 37.5mm
Closing and latching speeds adjustable on site
Suits single and double action doors
Commercial

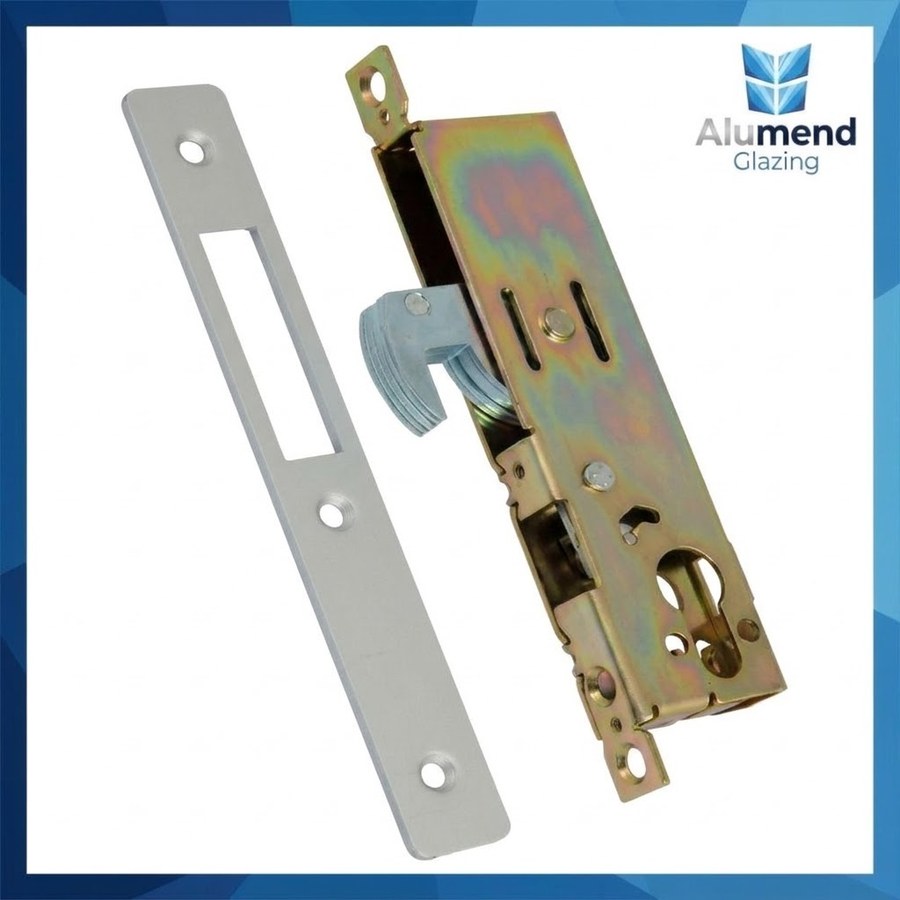

Narrow Stile Hookbolt Lock Case
Hookbolt lock case for narrow stile aluminium doors, to suit a standard euro cylinder. Supplied with faceplate. The hookbolt pulls the leaf in and holds it against the frame, so it is the usual choice for single leaf entrance doors and pairs with a shootbolt passive leaf.
Not sure which backset you need? Measure from the face of the stile to the centre of the cylinder, or send a photograph of the old lock and we will identify it.
Commercial

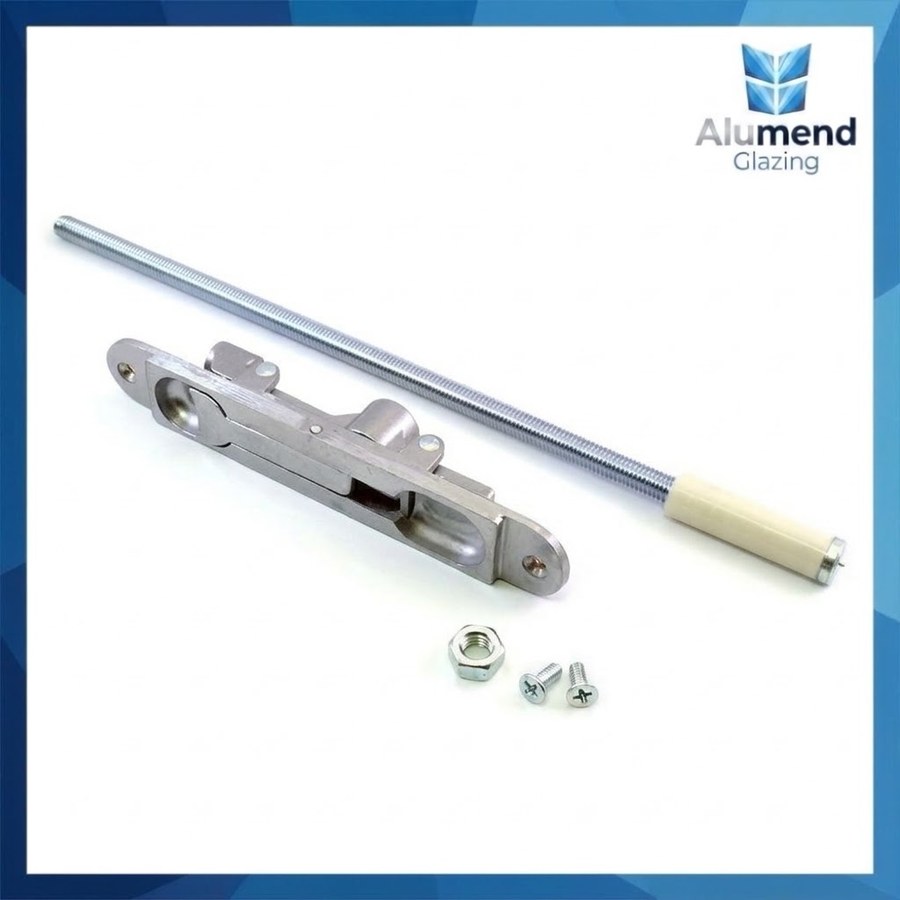

Single Flush Bolt with Guide
Flush bolt for the passive leaf of a pair of aluminium doors. Morticed into the stile so it sits flush, with a threaded extension rod and nylon guide to shoot into the head or the threshold. Sold singly — a pair of doors usually takes two, one top and one bottom.
Ordering for a pair of doors? You will usually want two — one shooting up into the head, one down into the threshold.
Commercial

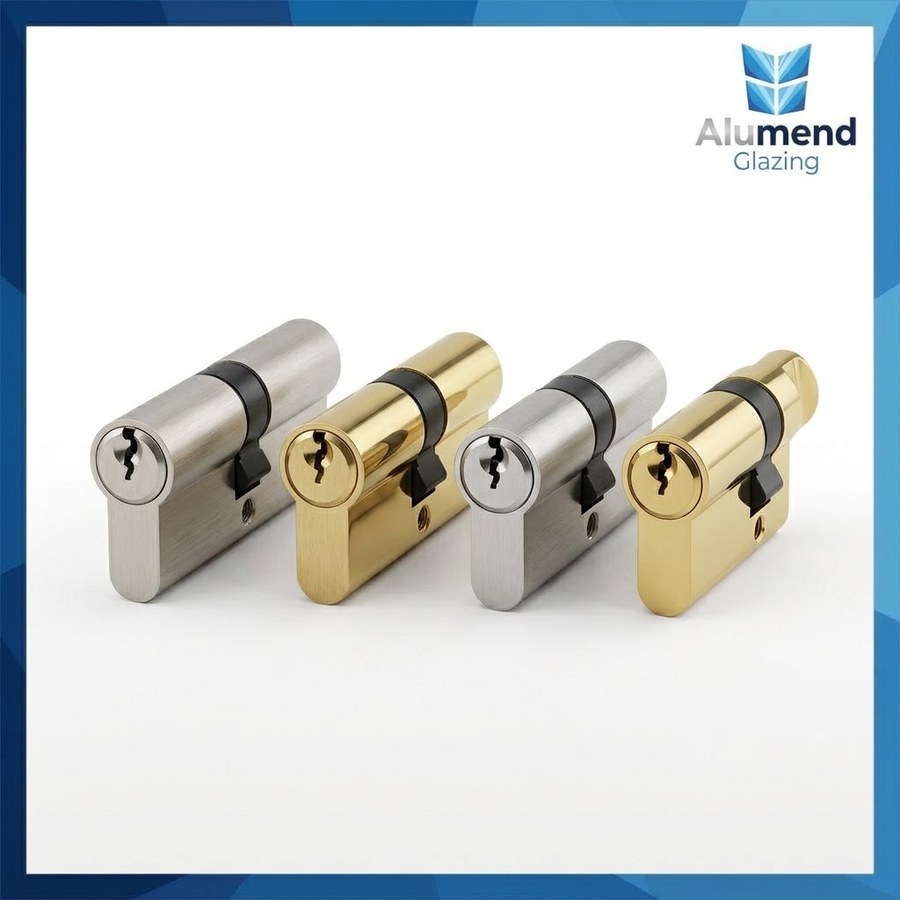

Euro Profile Cylinder
Standard euro profile cylinders for aluminium, uPVC and composite doors. Double cylinder or key and thumbturn, keyed to differ or keyed to pass, supplied with three keys and a cam screw.
One cylinder (or a matched pair on the pair options)
Three keys
Cam fixing screw
Cylinder types
Double cylinder — key both sides
Key and thumbturn — key outside, turn inside, for final exit doors
Keyed to differ — every cylinder on its own key
Keyed to pass — one key operates the set, for a pair of doors or a run of them
Specification
Standard euro profile, 33mm from fixing hole to each face on a 60mm
Lengths 60mm to 100mm; keyed to pass options are 60mm
Six pin, anti-drill pins
Suits aluminium, uPVC and composite doors
Measure from the centre of the fixing screw hole to the outside face of the door, then to the inside face, and give us both figures if you are unsure. Need a larger set keyed to pass, or a master suite? Ask and we will quote it.
Alpro

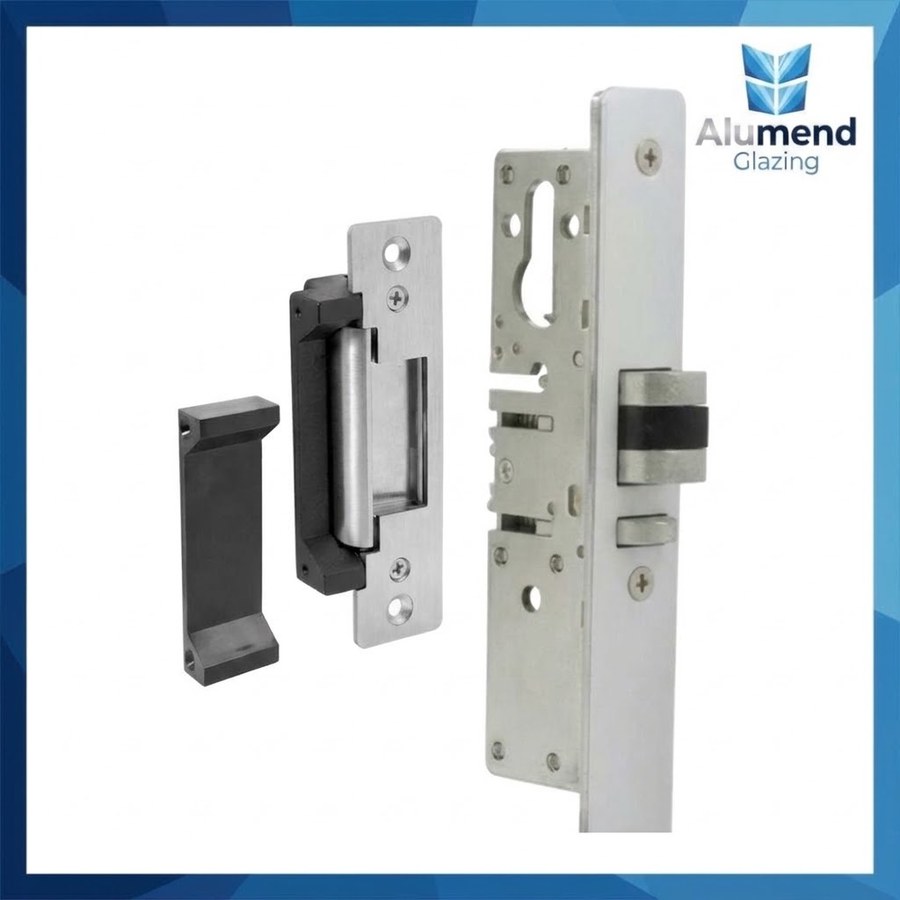

Electric Strike and Deadlatch
ANSI electric strike for access control on aluminium doors, with the matching euro profile deadlatch it releases. Build the set you need below — strike, deadlatch and extension lip price up together, or take any one on its own.
ANSI format, stainless steel faceplate, short or long
12 or 24v DC, so it runs off most access control panels
PTO — power to open. The door stays locked with no power, and power releases it. The usual choice on an entrance door.
PTL — power to lock. The door releases when power is lost, for escape routes where that is required.
Monitored versions signal the panel whether the strike is locked
Deadlatch
Euro profile cylinder operated, for narrow stile aluminium doors
Supplied with faceplate
Backsets: 25mm, 28mm or 38mm
Extension lip
Black finish, 15mm, 25mm, 50mm or 75mm
Use where the frame rebate sets the keep back from the latch
Not sure of the backset or the gap you are bridging? Measure from the face of the stile to the centre of the cylinder, or send a photograph of the frame and the existing latch, and we will confirm it and the handing with you before anything is sent. PTO or PTL on a fire escape route should be confirmed against the door strategy before ordering.
More Parts Being Added
We are listing the hardware we fit day to day: euro and oval cylinders, hook locks and multipoint gear, lever and pull handles, patch fittings and pivots, panic and exit hardware, gaskets and weather seals.
If you need something that is not listed yet, ask. We source from several suppliers and can usually get most commercial door hardware, including obsolete and hard to find parts.
How Ordering Works
Choose your option and hit order, and the email comes through to us with the item and variant already filled in. We confirm availability, postage and the total before you pay anything. Prices on this page exclude VAT, which is added to the invoice. If you are not sure which option you need, send the door width, height and a rough weight and we will tell you.
Fitting is available across the North West if you would rather not do it yourself — see Repairs.
Need a Price?
Send a photograph and a rough size and you'll usually get a figure the same day.
